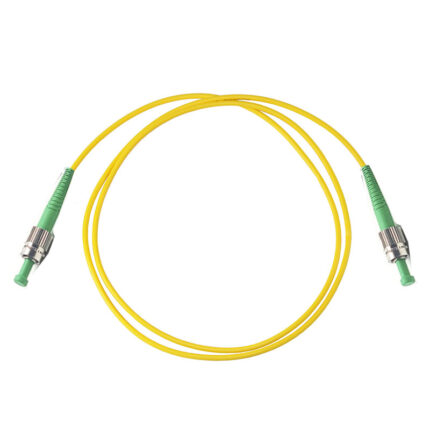

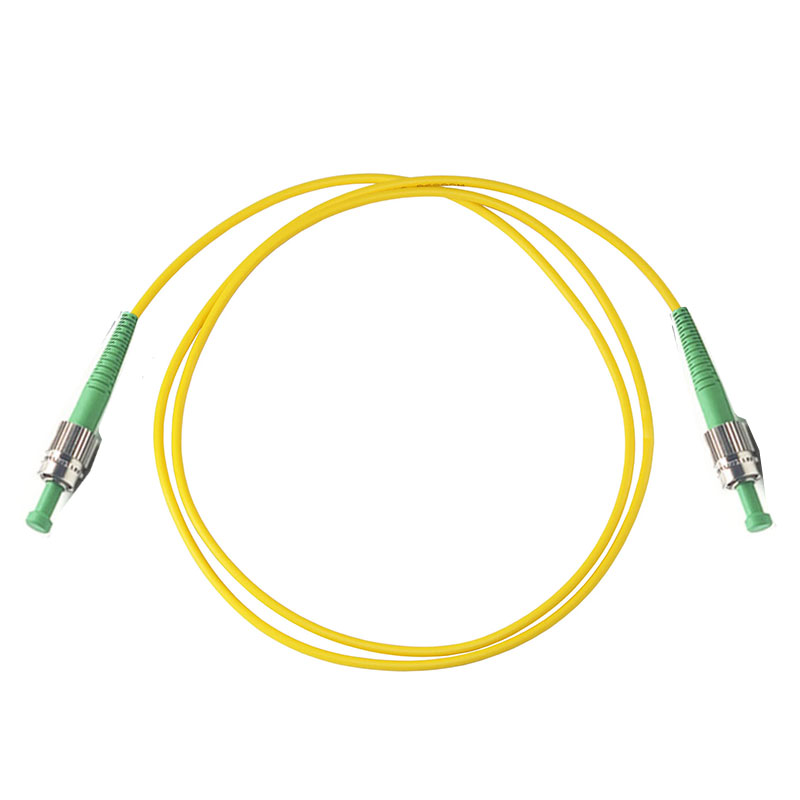

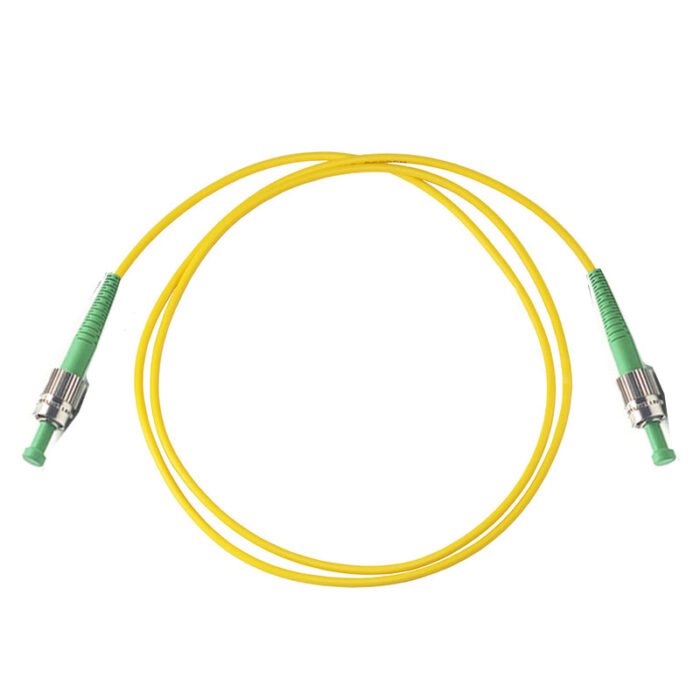

980 – 1200nm Single Mode Patch Cord, FC/APC, 3.0mm Yellow Jacket
$55.00 – $127.00
1060-XP Fiber, Operating Wavelength: 980-1600nm; Cutoff: 920 ± 30nm; Ø3.0mm yellow Jacket; FC/APC;
Description
TARLUZ Single Mode fiber optic patch cord is manufactured with various single mode fiber and terminated by FC, SC, LC, ST, MU, MPO, MTP and other types of fiber connectors, by PC or APC polishing. while for the FC connector, it can be supplied with wide key (2.14mm) or narrow key (2.02mm) width. The patch cord can be supplied with 250um bare fiber, 900um buffered fiber, 2.0mm or 3.0mm cable, and armored cable.
Features:
- SM Patch Cables for Signal Transmission from 320 nm to 2200 nm
- Low insertion loss & High return loss
- Jacket cable diameter: 250um, 900µm, 2.0mm and 3.0mm
Specifications:
| Parameters | Specifications |
| Fiber Specifications | |
| Fiber Type | 1060-XP |
| Operating Wavelength | 980 – 1600nm |
| Cutoff Wavelength | 920 ± 30nm |
| Mode Field Diameter | 5.9 ± 0.3um @ 980nm 6.2 ± 0.3um @ 10600nm |
| Core NA | 0.13 |
| Core Diameter | 5.3um |
| Cladding Diameter | 125.0um |
| Coating Diameter | 245.0um |
| Patch Cable Specifications | |
| Connector Type A | FC/APC |
| Connector Type B | FC/APC |
| Insertion Loss (dB) | 0.5dB (Max.) 0.3dB (Typ.) |
| Return Loss (dB) | PC Connector: 50 dB Typical (40 dB Min) APC Connector: 60 dB Typical |
| Max. Optical Power (mW) | 300 |
| Connector Key for FC Type | Narrow key (1.97 ~ 2.02mm, in default) or Wide key (2.09 ~ 2.14mm) |
| Jacket Type | 3.0mm Yellow Tubing |
| Operation Temperature (°C) | 0 to +70 |
| Storage Temperature (°C) | -40 to +85 |
